Rewind Units

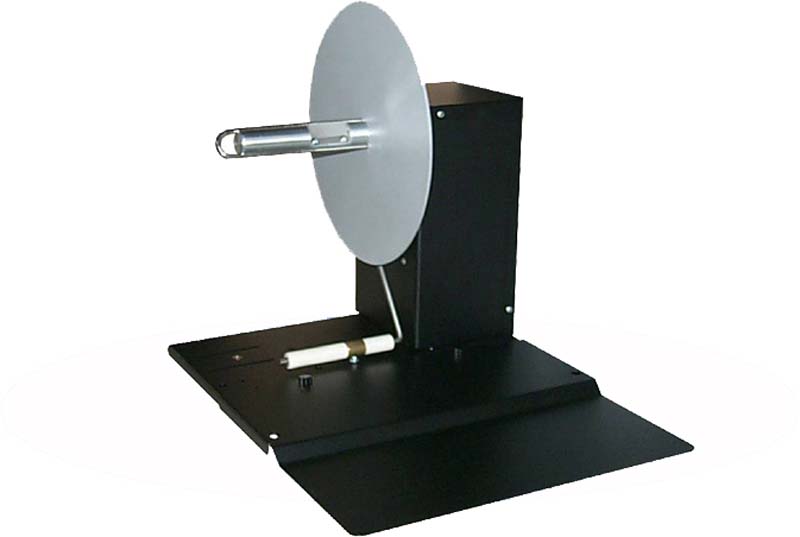

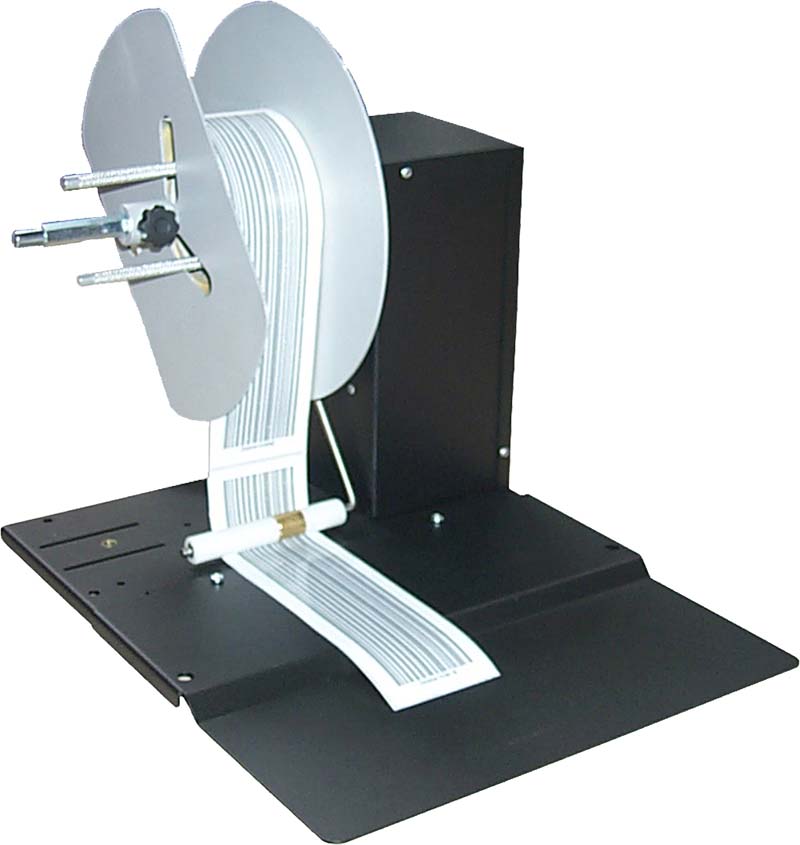

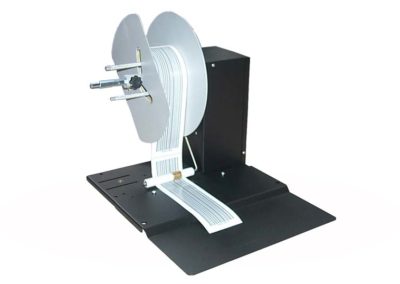

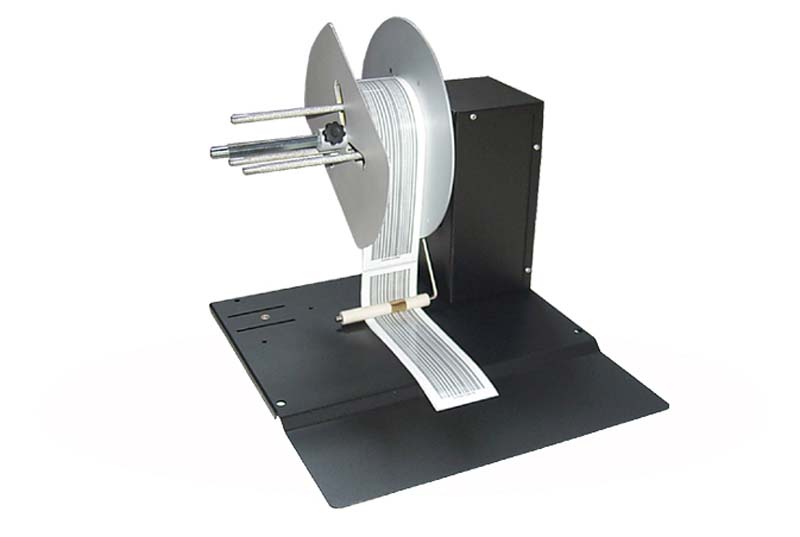

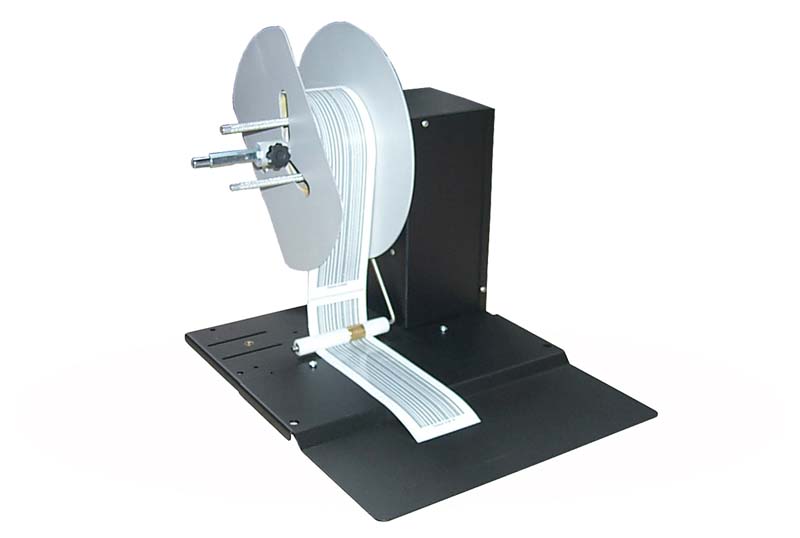

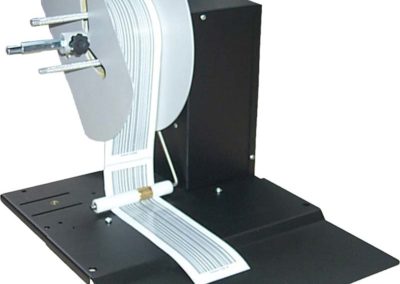

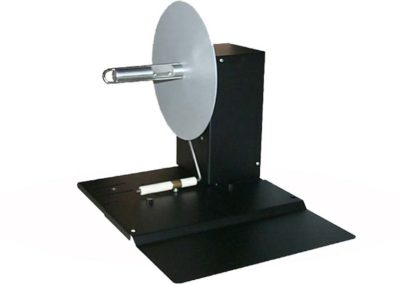

Our range of label rewinders can handle labels up to 127mm, 174mm and 244mm wide and rewind rolls with diameter up to 250mm and 300mm. Users can choose among 2 different types of core holders: the adjustable core holder from 40mm up to 118mm and the 3” fixed core holders.

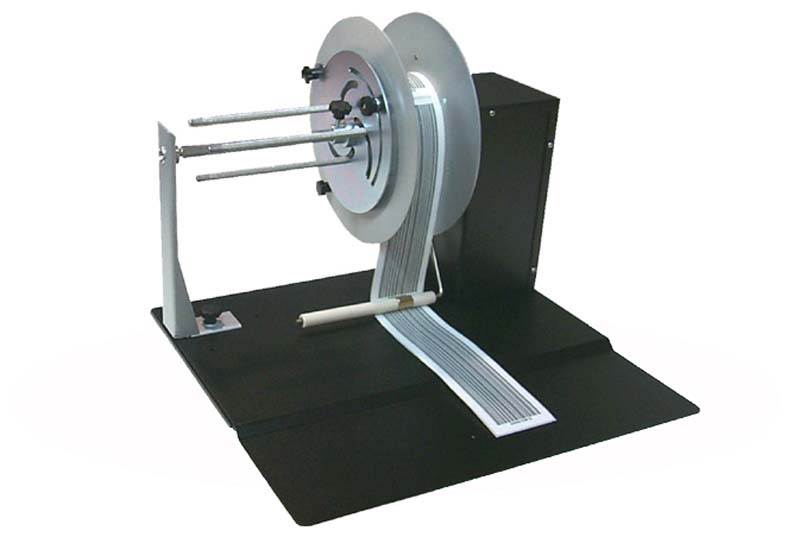

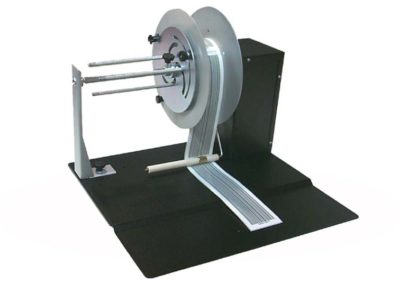

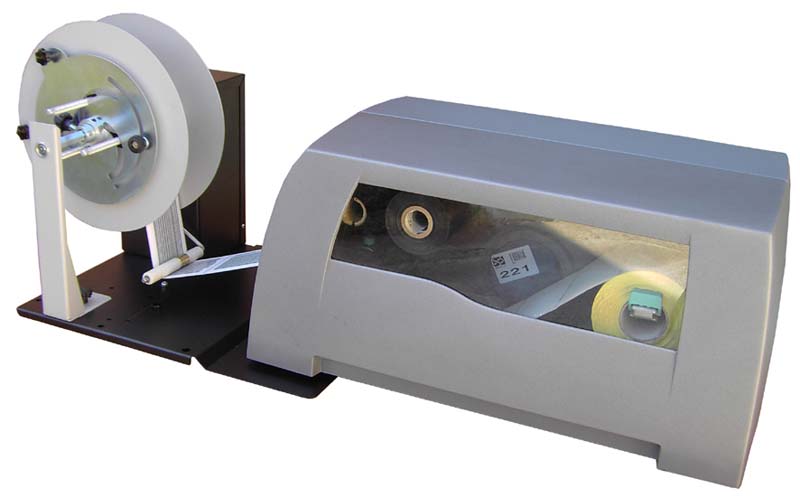

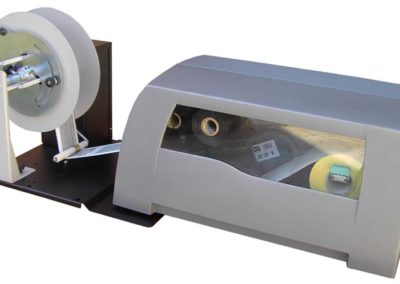

It is possible to add an optional support for heavy rolls (if the unit is equipped with support, the core holder is adjustable 46mm-118mm). Rewinders are equipped with an external auto-switching 100/240V power supply and an electronic circuit controls the functions.
When the roll of labels runs out, the rewinder stops by uttering an acoustic signal. The possibility to adjust the sense of rotation, clockwise or counterclockwise, allows to rewind the labels face in or face out.

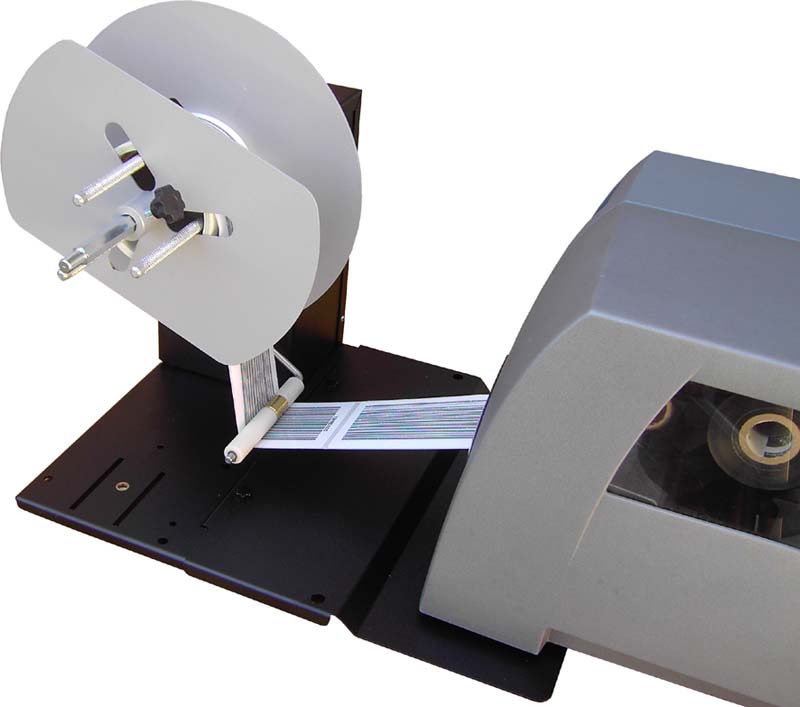

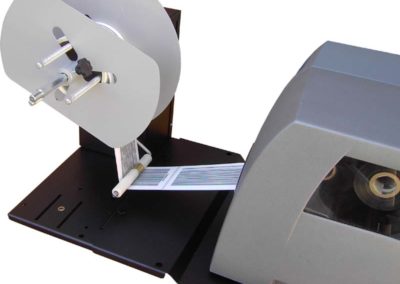

The tension arm adjusts the speed of rotation: when it is down, the rewinder turns at full speed, whereas when the tension arm is up, the rewinder is idle and blocks the motor’s rotation when the printer stops.
Our label rewinder series is available in different versions and every model is marked by its own code. Through the configuration table below, it is possible to select the version better fitting your needs and to obtain the code of the product to order
